When choosing a press machine for your manufacturing process, the decision often comes down to the type of frame structure that best suits your needs. Two of the most commonly used press designs are H-frame presses and C-frame presses. Both offer distinct advantages depending on the specific requirements of the task at hand. In this article, we will compare H-frame presses and C-frame presses, highlighting their differences, benefits, and ideal applications to help you determine which one is right for your operations.
H-frame presses, also known as "four-post" presses, are characterized by a sturdy and rigid frame that resembles the letter "H." This structure consists of four vertical posts connected by two horizontal beams, which provide excellent stability and allow for high-pressure applications. The design typically includes a large bed or work surface and a stationary ram that moves vertically, making it well-suited for heavy-duty tasks.
H-Frame High Speed Precision Press
Key features of H-frame presses include:
Robust Stability: The four-post design offers significant stability, reducing flexing and bending under high pressure.
Heavy Duty Applications: H-frame presses are ideal for heavy stamping, punching, forming, and deep drawing operations.
Precision and Accuracy: The rigid frame helps maintain alignment and ensures precision when applying force to materials.
C-frame presses, on the other hand, are distinguished by their "C" shaped frame, which is a single, vertical structure with a wide opening in the center. The design is more compact compared to the H-frame, which makes C-frame presses more accessible in tight spaces. C-frame presses typically feature a movable ram, which moves vertically along the "C" structure, applying pressure to the material being processed.

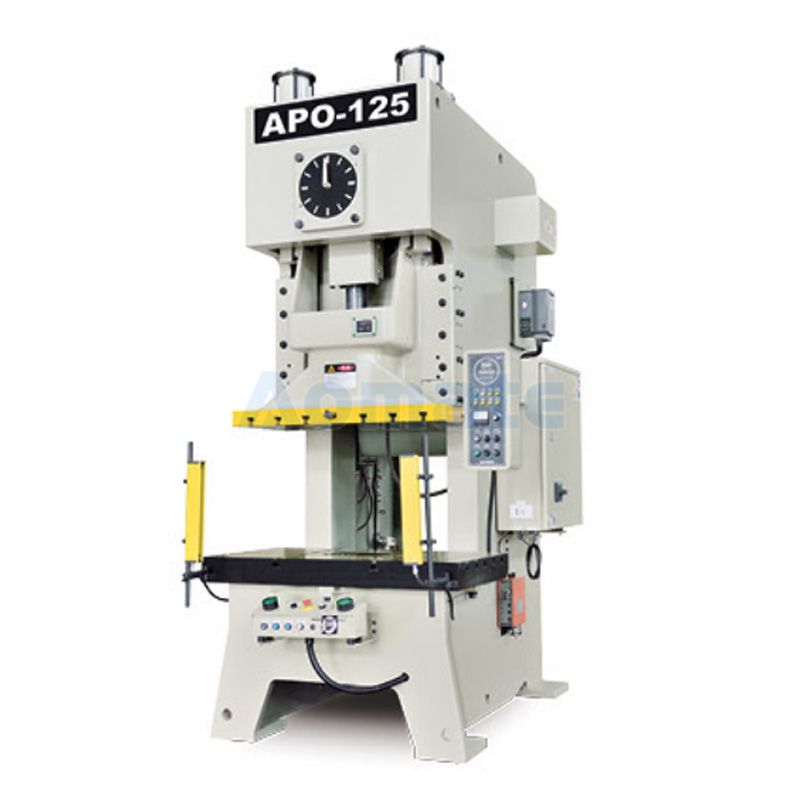

C Frame Single Crank Press Machine
Key features of C-frame presses include:
Compact Design: The "C" shape allows for a smaller, more compact frame that takes up less space in the workspace.
Lower Cost: C-frame presses are often more cost-effective compared to H-frame presses due to their simpler design.
Easy Access: The open frame design allows for better access to the workpiece, making it easier to load and unload materials during operation.
Now that we have an understanding of each frame design, let's compare the two types of presses across several key factors:
One of the most significant differences between H-frame and C-frame presses is their stability and load-bearing capacity. H-frame presses, with their four-post structure, provide greater support and rigidity. This makes them ideal for high-force applications like heavy stamping, forging, and deep drawing where consistent pressure is required. They are better at maintaining alignment during high-load operations and can handle larger workpieces with ease.
In contrast, C-frame presses, while stable, are less rigid under high-pressure conditions due to their open-frame design. They are suitable for lighter to medium-duty applications where high precision is required but the force needed is less than what an H-frame press can provide. If your operation involves large-scale, high-force production, an H-frame press is likely the better choice.
When it comes to space efficiency, C-frame presses generally have the advantage. Their compact, open-frame design allows for easy installation in spaces with limited room. The design also offers easy access to the workpiece, which is particularly helpful when quick material changes or adjustments are necessary.
H-frame presses, while providing superior stability, require a larger footprint and more space for operation. This can be a consideration if you have a smaller workshop or need to optimize your floor space. However, this trade-off is often worth it if your operation demands high force and precision.
H-frame presses are incredibly versatile and capable of handling a wide variety of applications. Their ability to handle higher loads and pressures makes them suitable for industrial applications such as:
Heavy stamping and metal forming
Deep drawing
Forging
Automotive part production
C-frame presses, while generally suited for lighter applications, can still be highly versatile. They are commonly used for tasks such as:
Small stamping and punching
Assembly and joining
Light sheet metal forming
C-frame presses are often found in smaller shops or for specific applications where space constraints are a factor. They are also more commonly used in the production of smaller components or less demanding tasks.
Both H-frame and C-frame presses are relatively easy to maintain, but their complexity differs. H-frame presses, due to their heavier-duty construction, may require more frequent maintenance and higher initial costs. The additional components involved in their design, including the larger frame and heavier load-bearing capabilities, might require more attention to prevent wear and tear under high loads.
C-frame presses, with their simpler design, generally require less maintenance. Their smaller size and fewer components make them easier and less expensive to repair or maintain over time. However, because they are not as robust as H-frame presses, they may not withstand extreme or constant pressure as effectively, potentially leading to quicker wear in heavy-duty environments.
The initial cost of both types of presses can vary depending on the manufacturer, model, and features. However, C-frame presses tend to be more affordable due to their simpler design and smaller size. For operations with tight budgets or smaller-scale production, a C-frame press may be a more economical option.
On the other hand, H-frame presses are typically more expensive due to their robust construction and ability to handle larger and heavier loads. These presses are better suited for high-volume production environments where the investment in a more durable, higher-capacity press pays off over time.
Both H-frame and C-frame presses have their distinct advantages, and the best choice depends on your specific needs and operational requirements.
Choose an H-frame press if you require:
Higher load capacity and stability
Heavy-duty applications like deep drawing, forging, or stamping
Precision in high-force operations
Choose a C-frame press if you need:
A more compact design and space efficiency
A cost-effective solution for lighter-duty applications
Easy access for quick material changes and adjustments
Ultimately, your decision should be based on the specific type of production you are involved in, the scale of your operation, and your space and budget constraints. By evaluating these factors, you can ensure that you select the press that best meets your requirements and helps optimize your manufacturing processes.
