Elevator Door Panel Intelligent Stamping Production Line

● Performance Advantages

APM-400 elevator door panel intelligent stamping production line is a stamping production line specially for door panel punching plate blanking in elevator industry and intelligently connected with the automatic bending line of the next process. It is composed of aumart APM-400 closed two-point precision punch, punching blanking die, automatic uncoiling and leveling feeding system, robot blanking, turnover, detection system and automatic die change system, The fully intelligent production of multi specification door panels is perfectly realized.

At present, the actual production beat of the production line is 6 pieces / min, which is twice the efficiency of the traditional process beat. The product quality is improved through the automatic stamping mode, and the qualified rate of the door panel of the upper automatic bending line is 100% through automatic detection. The automatic feeding of 10 ton coil is completed through the automatic uncoiling, leveling and feeding system, and the 20 minute product line switching is realized through the automatic die changing system, which improves the work efficiency and quality, reduces the floor area of the intermediate process, reduces the operators and reduces the work intensity.

The production line is equipped with the intelligent stamping MES system independently developed by OMAT, which can realize the monitoring, statistics, switching control and automatic identification of products of different specifications, interact with the MES system of the customer's factory, and improve the digital management level of the whole line.

● Application

It is widely used in civil, commercial elevator industry and other product fields.

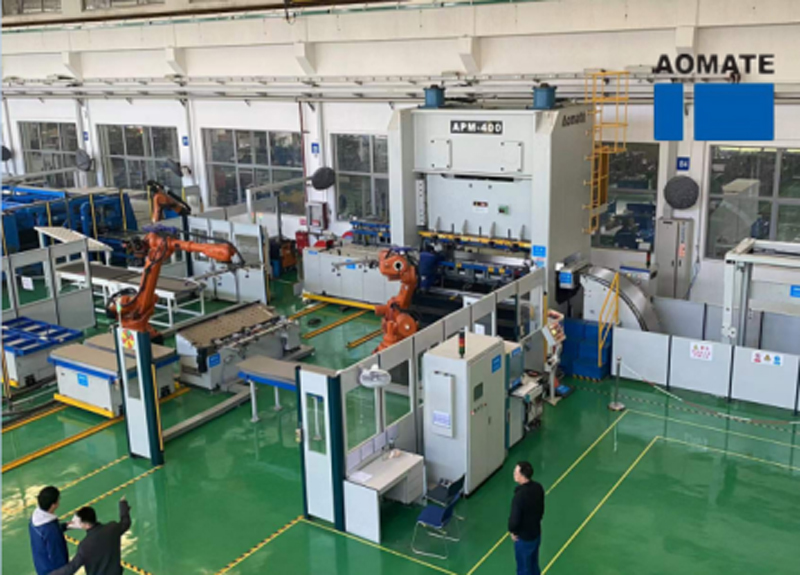

● Picture Introduction
